Model No.: 2756
SPECIFICATIONS:
M/B Form Factor: Mini-ITX (6.7"x 6.7")
Dimensions (D x W x H): 265x 295 x 63.5(mm) , 4.7L
Drive Bays: Internal 1*3.5" & 1*2.5" HDD
PSU Form Factor: Internal Power Supply: 80W (12V)
External Power Supply (A/C): 60W & 84W (12V)
Indicators: 1 x Power Status, 1 x HDD Activity

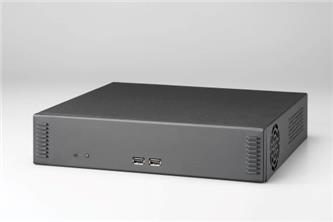

Front I/O: 2x USB2.0

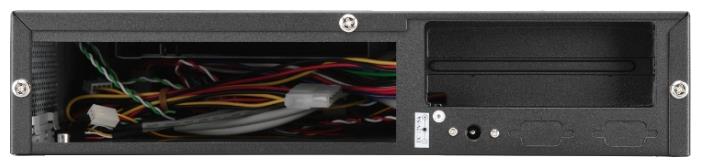

Rear I/O: PCI Slot, COM*1, ANT Hotel *1, Power Button
Material: Steel
System Fans: 6 cm*1
Thickness: 0.8mm
Container Loading: 20’:1100, 40’:2400, 40’HQ:2800
Application: STB, POS, Kiosk, Fire Wall, Call Center, Desktop PC
