4U-480AI


• High-density design for space saving L=480mm;
• Top-Cover with Quick-tooless design for maintenance
• Supports Max 12"*13" or below size motherboard
• Supports ATX 80plus Platinum 1 1 Redundant Power supply
• 8* Full profile slots ideal for 2*GPU Cards
• Front access USB 2.0 port/3.0 port
• Supports GOSET-360 Liquid Cooler Support (RGB)


Specification:

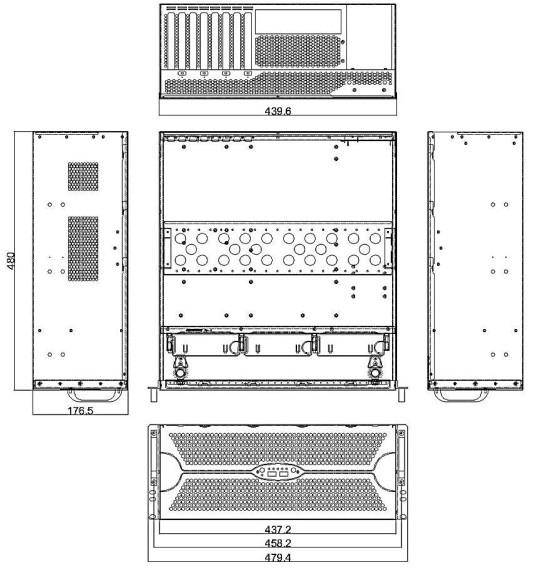

Dimensions (D x W x H) mm: L480*W437.5*H176.5MM
Material: SGCC 1.0mm Zinc-coated steel
Drivers Bay: 4*U.2 NVME SSD bays; compatible 2.5”/3.5” HDD
Cooling : 3 x 120x38mm PWM easy swap fans, Option 1 x 80x38mm PWM fan, GOTSET-360 Liquid Cooler Support (RGB) support
Power Supply: Supports ATX or 1+1 redundant power supply,1100W/1300W/1500W/1650W/2000Wetc.
Expansion Slots: 8* Full Profile Slot
Front Panel: System power on/off, System reset and 2 x USB 2.0/3.0 port
LED Indicators : Power, LAN, Drive and Alert
System Board : MAX 12”(W) x 13”(D) EEB MB
Drive Bays :
External: N/A
Internal: 4 *U.2 Nvme Bay
Backplane: N/A
Storage Temperature : 0°C(32°F) ~ 50°C(122°F)
Humidity: 5% ~ 95% non-condensing
Gross Weight: 18KGs
Package Dimension (W x D x H) • mm: Dual Carton--630*590*320mm K636K
Mounting: Tool-less slide rail
Application: AI, Edge computing, Deep learning, Rendering, GPU computing etc.
