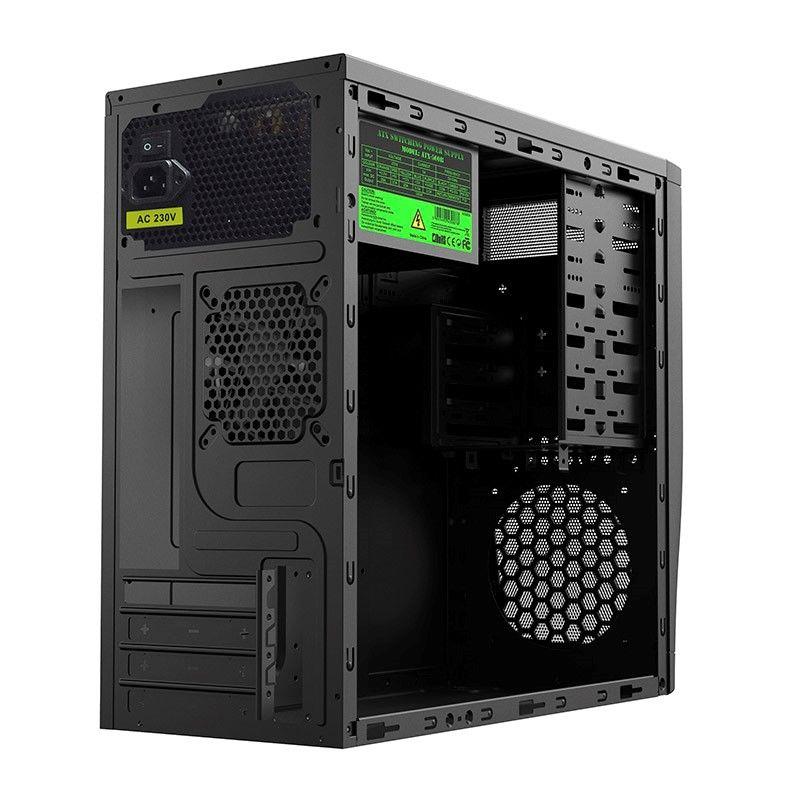

M-2286

Micro Chassis
* 2x3.5 External; 2x5.25 External
* 3x3.5(one of exchange) 1x2.5 Internal
* Front 1x12cm LED fan optional
* Fully mesh front panel, for best cooling to improve stability of PC running.
* Tool-less ODD and HDD optional holder


Chassis dimension 368*173*365MM
Case dimension 368*173*380MM
Packing dimension 405*448*209MM
Nett weight 4.1kgs
Gross weight 4.8kgs
Material SGCC or SECC
Thickness 0.5 mm or 0.6mm optional
CE Front metal panel Optional
Cooling Fan 1*8cm fan as option
Colour Normal black body
Motherboard size Micro ATX
5.25\" bay 2
3.25\" bay (exterior) 2
3.25\" bay (interior) 2
2.5\" bay (interior) 2
Tool-less Yes
Expansion Slot  4
Audio HD-AUDIO
Connector 2x USB2.0 or USB3.0
Power Cord Optional
Power supply Optional
